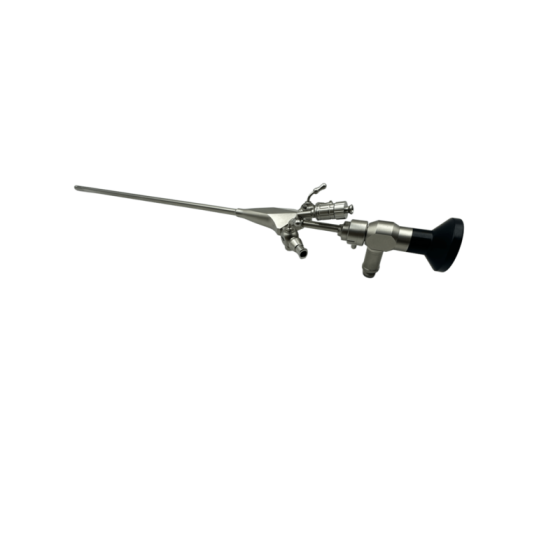

Product NameUBE spinal endoscopy - Cervical Vertebrae Specification and modelΦ2.7mm × 110mm / 0° Scope of applicationCervical UBE minimally invasive surgery Surgical useIn conjunction with the ultra-fine surgical instruments specifically designed for cervical vertebrae, endoscopic operations such as cervical spinal canal decompression, discectomy, and intervertebral fusion are completed.







This product adoptsThe structure of the mirror body and the mirror sheath being separatedIt is composed of the endoscope body and the matching endoscope sheath. Both the endoscope body and the endoscope sheath must be sterilized in accordance with hospital infection control regulations before they can be used in combination. The lens sheath, as a channel carrier that directly contacts the surgical area, can be packaged in disposable sterile packaging or in reusable specifications. The mirror body is a high-precision optical imaging component and only supportsLow-temperature sterilizationIt is placed into the surgical channel through a sterile lens sheath.It provides a high-definition visual observation field specifically for minimally invasive cervical UBE surgery。



During the operation, under the continuous rinsing of normal saline,The lens sheath can effectively prevent blood, tissue fluid and bone debris from directly eroding and wearing the main body and optical end face of the lensReduce the contamination and wear of the endoscope body, alleviate the difficulty of cleaning and sterilization, protect the precision optical components, extend the overall service life of the endoscope, and lower the long-term usage cost of the equipment. The endoscope sheath supports rapid replacement, which can avoid repeated sterilization of the endoscope body during multi-segment cervical spine surgeries and effectively improve the surgical efficiency. At the same time, customized solutions of different lengths and diameters can be provided for precise matchingAll segments of the cervical vertebraeAnatomical requirements of minimally invasive channels. The lens sheath is adoptedHole-free integrated designIt can be achieved in conjunction with an external flushing pipelineWater flow offsetting functionDuring the operation, the surgical field should be kept clear continuously to enhance the smoothness and safety of the surgical operation.



Usage Tips The diameter of the mirror rod of this product is onlyΦ 2.7 mmBelonging toUltra-fine cervical vertebrae-specific endoscopeDue to the slender body and relatively weak rigidity of the mirror,It is more prone to damage under the action of external forces such as bending, impact and twistingAll aspects of surgical operation, placement, transportation and storageThere are relatively high standard requirements。 When in use, it must be operated under the protection of the lens sheath in a standardized manner to avoid abnormal external force damage. It is recommended to be used by a physician with experience in minimally invasive cervical UBE technology.







Φ2.7mm×110mm/0° UBE spinal endoscopeDesigned specifically for minimally invasive cervical UBE surgeryWith the use of replaceable spectacle shears and a hole-free water flow hedging structure, combined with ultra-fine cervical spine surgical instruments, it can be completed safely and efficientlyCervical decompression and intervertebral fusionWait for minimally invasive operations. The endoscope is slender and has a clear field of vision. While achieving minimally invasive surgery, it has high requirements for the standardization of operation and proficiency in use. It is an ideal visualization device for precise and safe cervical UBE surgery in clinical practice.
